Track Day Bike Prep-Triumph Street Triple R

The Patient:

I recently sold my trusty track-only 2005 Kawasaki ZX6R for a more upright track /street bike. I thought I would buy a new Yamaha FZ-09, but I talked with Dave Searle from Motorcycle Consumer News who told me that the FZ needed a lot of work to make it track worthy, so I opted for a slightly used 2012 Triumph Street Triple R. I rode it at a track day the day I picked it up and it performed very well in stock form. But, as a track day junkie and instructor, I needed more precise handling and I need to make sure a tipover will not keep me from continuing with my day.
Besides doing the track day stuff, I also Accessorized the Street Triple with some street-oriented stuff. You might want to check that out later.

 First, Some Video

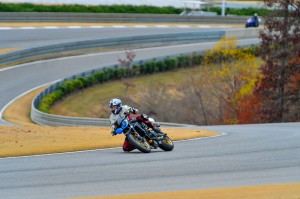

Below is a video showing a couple of laps of me and the Striple at Loudon. I’m in the red vest. The Street Triple fun starts at 7:10.

At Barber

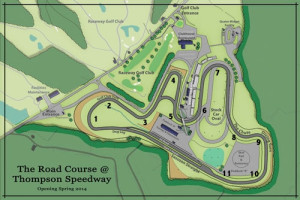

At Thompson, CT

Bolt on Bike Protection

You are not required to have frame sliders or any other type of bike protection at most track day events. But, it is smart to protect your motorcycle in the event that you go down. I ride on the racetrack as one of my jobs, so I do over 2,000 track miles per season. Even though My crash rate is very low, I have been known to make a mistake or two. An investment in bike protection (as well as rider protection) can mean the difference between ending your day early or getting back out on the track to finish your day on two wheels. I also carry some spare levers and foot pegs, just in case.
Here are some images of the work I’ve been doing to my 2012 Triumph Street Triple R. It is serving as my track bike and as an occasional street bike. I focused first on bolting on some engine, frame and exhaust protection. I work for Twisted Throttle, so it made the most sense that I use products that they import and sell. The stuff from R&G Racing and SW-MOTECH are top shelf, IMO and I would consider using their products even if I didn’t get the employee discount. Click the links to see all of the Twisted Throttle products for the 2012 Street Triple  and 2008-2011 Street Triple.
A few notes (see photos below):

  • Wired oil filler and dipstick caps: I leave more wire at the ends so I can simply unwind the tail end, pull it through the hole and then reuse the wire after an oil change.
  • R&G Racing swingarm spool and protector, in combination with the Woodcraft spool and protector: I have both of these swingarm protectors because I have seen too many swingarms get damaged when the threaded swingarm spools break off in a crash. I decided to add the axle spools/protectors to try and give a second point of contact to hopefully prevent the threaded boss in the swingarm from getting damaged. Another reason to have both spools s because you can’t use the rearward R&G spools to support your bike with a race stand for removing the wheel, because they must be removed to take out the axle. So you need the other spools as well.
Peter Kates from Computrack Boston works his magic.
Peter Kates from Computrack Boston works his magic.

Suspension

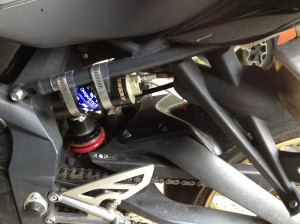

Penske 8389 remote shock
Penske 8983 remote shock

The suspension was upgraded over the winter to include Penske fork valving, a .95 fork spring swap and a Penske 8983 with a remote reservoir. The stock suspension is very good, but at the level I need to ride when instructing for Tony’s Track Days, I need a bit more adjustability than the stockers can provide. The remote reservoir was a bit difficult to locate, making the extra cost of a piggyback worth considering. But, it works great.
The highly regarded skills of Peter Kates from Computrack Boston were employed. PK has been around the Loudon paddock for years and is the go-to guy for suspension and chassis tweaks.After some compression and rebound damping tweaks and a change to a 750 pound spring, the shock is now setup for serious lap times. What is interesting is that the suspension now doesn’t work as well at slower speeds. It’s a bit busy UNTIL you turn up the speed and then it all makes sense (like most race setup suspension).

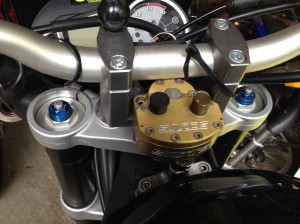

Forks recessed into the clamps adds sorely needed trail. And the Scott's damper is a nice thing to have for cresting hills at speed.
Forks recessed into the clamps adds sorely needed trail. And the Scott’s damper is a nice thing to have for cresting hills at speed.

One other thing I had Peter do was measure the chassis to get the rake and trail to be set at the optimum numbers for fast riding. This means increasing trail on the Triumph 675s. Many Daytona riders opt to replace their triple trees with one with less offset. this gives them the trail needed for mid-corner stability and cornering feedback. The Street Triple is closer than the Daytona in regards to trail, so instead of springing for the $800.00 triples, Peter slid the fork tubes down inside the top clams as far as possible. It looks weird, but it did increase mid-corner feel at speed without slowing turn-in.

Tires

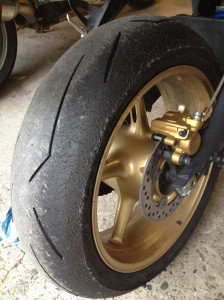

Pirelli Supercorsa on 2012 Triumph Street Triple R after 2 sessions at NHMS (Loudon) runing in the advanced group.
Pirelli Supercorsa on 2012 Triumph Street Triple R after 2 sessions at NHMS (Loudon) running in the advanced group.

People have a lot of questions about tires. I have done track day laps on all kinds of tires, including basic OEM rubber, Sport touring tires, sporty street tires, and DOT race tires. Believe it or not, most all are capable of keeping you on two wheels when ridden at a novice, intermediate, or a slower advanced group pace. I have used Michelin Power One race tires for the last few track day seasons and loved them, but this year I am switching to Pirellis. The reason is that I always liked the feel of Pirelli tires and it doesn’t hurt that TTD is supported by Motorcycle Tires and Gear (MTAG), who also supplies Pirelli tires to the Loudon Roadracing Series.
My Street Triple comes stock with Pirelli Rosso Corsa, which is a proven track day favorite with many of the TTD staff, including my daughter, Jeannine. I rode the first 3 session at Loudon on the Rossos and had no sense that the tires were limiting me in any way. I changed over to Pirelli Supercorsa race tires after lunch so I could compare the differences and so would have fresh rubber for the track day that Tony and I will be attending at Barber Motorsports Park in November.  I got along with the Supercorsas just fine, thank you. I immediately braked deeper, accelerated stronger and cornered harder to a point where I approached my best times I typically do on my ZX6R. I was impressed.
Does the average track day rider need race tires? No. Most modern sport-oriented tires that are relatively new will do just fine. It comes down to whether your level of riding is good enough for you to actually use race ribber. Most people have a long way to go before the answer to this question is yes. Run what ya brung, mister.

Daytona Rearsets

2007 Daytona rearsets mounted on my 2012 Street Triple R

The stock Street Triple rearsets are very comfortable for street riding, but are too far forward and are a little too low for aggressive track riding. I dragged my toe slider before I was dragging my knee, which is no good, as I use my knee dragging to measure my lean angle. And without that tool, I am not able to monitor lean angle with the same level of confidence I like. The stock footpegs are also too far forward for moving from side to side without pulling on the handlebars. Footpegs that are further rearward allows me to use my legs to support my torso when flopping from left to right, especially when doing so uphill, like what happens at turn 7 and turn 8 at NHMS.
The 2007 Daytona rearsets bolt on easily with no issues whatsoever. I could even use the stock shift rod. The rear brake light switch needs a bit of adjustment, but that’s really easy to do.The Daytona pegs could be even further back for my taste, but it’s a big improvement at 1″ further back and 1/2″ higher compared to the stocker STR rearsets. I also think the Daytona rearsets look great.

Levers

I installed some shorty levers, which are more adjustable than the stock ones and are less likely to break in a crash. The short levers also accommodate two finger use and they look cool. I’ve used ASV levers before and really like them, but a lot of racers use the cheap knock-offs from China, so I’m giving them a try. I installed the levers and they seem fine. Perhaps they aren’t as nice as the expensive ones. but they are good looking and work great. I have to get used to the shorties after always having standard long versions.

Tank Protectors

Like a lot of sport bikes these days, the tank on the Street Triple sticks out on either side, enough to cause serious damage in a crash. The latest R6 tanks are known to puncture where the tank sticks out. I opted to mount the R&G Racing tank sliders on the Triple. They are glued on using Aquarium sealant. I asked R&G whether this sealant will harm paint and they say that it will not. They look a little to Squidly for my tastes, but they will do the job if I were to crash.

R&G Tail Tidy keeps the turn signals out of the way and save a ton of weight.
R&G Tail Tidy keeps the turn signals out of the way and save a ton of weight.

R&G Tail Tidy Fender Eliminator

The R&G Tail Tidy allows my bike to be ready for both track or street. The fender eliminator save a lot of weight and keeps the turn signals tucked in in case of a fall.
Click the link below to view the Twisted Throttle product page for the Tail Tidy.

Tiger 1050 Throttle tube and grip

I just installed a Tiger 1050 throttle tube, which has a larger diameter cylinder that the cables run on. This means that the distance (and time) it takes to reach full throttle is reduced.  Racers install quick throttle tubes as a matter of course so they can get to full throttle in an instant. Motion Pro makes a throttle kit that includes several cams to suit the rider’s preference. The 1050 tube is cheap and is a stock item that is an intermediate upgrade without going the full race route.
The installation of the throttle tube was easy. However, I read about the throttle housing c=screws being easy to strip, so I grabbed my impact driver and with a few whacks, loosened the screws. Another slight complication was that the throttle wouldn’t snap back with the larger diameter throttle tube. After some investigation, I discovered that the throttle cables needed more slack… piece of cake, since the “pull” adjuster was about 6 inches down the cable from the throttle grip. Now it’s perfect.
I took it for a short ride and I love the feel of the throttle. It seems more responsive and shifting is even smoother. Two thumbs up on this cheap modification. ($17.00 shipped from Bike Bandit)

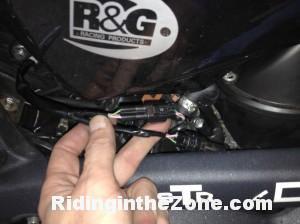

This is where the gear shift sensor is located. The wire goes to the unit that is behind the plastic countershaft sprocket cover.
This is where the gear shift sensor is located. The wire goes to the unit that is behind the plastic countershaft sprocket cover.

Gear Position Sensor Failure

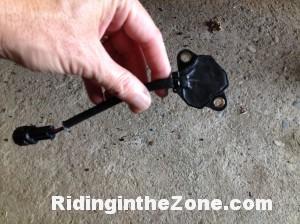

The old gear shift sensor.
The old gear shift sensor.

It seems that the Triumph 675s are notorious for having bad gear position sensors. The symptoms are a Check Engine Light (CEL) and any manner of numbers appearing in the gear indicator area of the speedo/tach instrument cluster. I bought the Tuneboy ECU reader and after many attempts to get the software to work (thanks Paul) I managed to confirm that the CEL was the result of the gear shift sensor going bad.
Some people have had good luck cleaning the old one, which worked for a while on my bike. But, in the end, the CEL kept coming on. What’s the big deal? you ask. Well, the bike ran fine, but the Tuneboy data shows that different fuel mapping occurs with the different gears. That means without an accurate indication of which gear you are in, the ECU can’t trigger the correct map.
The sensor is located behind the plastic countershaft sprocket cover with the connecting wire underneath the tank. You have to remove the gear shift rod. Hint: The small c-clips that hold the shaft onto the pivot balls poke into a small hole on the side of the shaft’s ball ends. Prop up the tank using the rod that is stored under the seat to get to the wires.
The newer version kit has a 8 inch jumper harness that plugs two of its leads into the Throttle Position Sensor located on the right side of the injector bodies.
The newer version kit has a 8 inch jumper harness that plugs two of its leads into the Throttle Position Sensor located on the right side of the injector bodies.

The new “kit” that was indicated for my bike included the sensor with a wire plug that does not fit the old plug from the bike’s harness. The kit includes a 8 inch jumper harness that plugs into the old harness, the new sensor at one end and the other ends plug into the Throttle Position Sensor located on the right side of the throttle bodies. The wire is long enough to cross underneath the fuel tank. Some say it may provide a power boost. We’ll see. At least the ECU will know what gear the bike is in.
After changing the sensor, the CEL went out after three startups. I am taking the bike to the track again in a week and I’ll see if any power advantages occur because of the new harness and sensor. Stay tuned.

General Track Day Bike Preparation

Oil filter and drain plug wired to keep fluids where they belong.
Oil filter and drain plug wired to keep fluids where they belong.

Preparing a motorcycle for a track day doesn’t have to be a big deal. Some people are under the impression that they have to drain fluids, wire bolts and tape every light in sight. While some track day organizations do require race-level preparation, many do not. Tony’s Track Days (TTD) requires very little prep. (See the video
below for requirements). Many people don’t have access to a truck or trailer and ride to the track on their street bikes. They remove their mirrors and licnse plate (if necessary), disconnect or cover the brake lights, lower their tire pressures (30,f, 30 r is a good starting place) and they are ready to go through tech inspection. Staffers are there to help with any issues. Motorcycle prep should not be a reason for not attending a track day!
One thing that seems to stump a lot of riders is how to secure a spin on oil filter. It’s as simple as getting a 4″ hose clamp from your auto parts or hardware store, slip it around the filter and rotate it so it hits a solid part of the engine or frame to prevent the filter from spinning off. If necessary, wire the clamp to a solid object (see photo).

Please Donate to Keep the Articles Coming

If you liked this article and the many other articles on this site, please toss a buck or five into the hat. It’s greatly appreciated!

    • Click the PayPal “Pay Now” button.
    • Then indicate quantity in $2.00 increments. – Example: put “2” in “QUANTITY” field to donate $4.00, “3” for a $6.00 donation, etc.

Why $2.00? Due to the PayPal fee structure, a $2.00 donation is significantly more beneficial compared to a $1.00 donation.

Thank You!




Product Gallery. Buy from here and support RITZ

Twisted_Affiliate-widget-R-G-Exhaust Twisted_Affiliate-widgetR-G-Tank-SLider


Check out these posts:

Stay Informed: Subscribe NOW!
Trianing-Tours_LandingBe a Better Rider: Sign Up for Personal Training with Ken
Support Riding in the Zone: Buy a book
Support Riding in the Zone: Buy products from Twisted Throttle & Amazon
Twisted_Affiliate-Interphone-widget
Twisted_Affiliate-Interphone-widget



Posted on

Guest Writer: Just Go Faster

Jeff Meyers on his '05 ZX6R
Jeff Meyers on his ’05 ZX6R www.otmpix.com

“Just go faster, Jeff,” my track riding guru Ken Condon says after asking him what I need to do next as a track day rider.  I am flattered, because Ken says that my track form is very good. He says that I am on “the line,” I am riding predictably and smoothly, and my body position, while I am sure it can be tweaked, is getting much better.
However, I am also befuddled because I wish it were that simple to “just go faster.” The problem is that each time I enter a turn faster than before, alarm bells shriek in my head, and adrenaline courses through my system. A voice screams “You are going waaaaay too fast for this corner!!” I am terrified.

Speed is the Result of Good Technique

Ken tells me that a faster pace is the result of good technique and consistency. So, I discipline myself to look farther down the track, keep maintenance throttle, relax my hands and upper body, and make my bike lean a little farther, all while being mindful not to move too much so that I don’t upset the suspension or cause tire slip. It’s a balancing act, a tightrope on two wheels. I am terrified, and yet I am so happy at the same time.

Take the Time You Need

I’m not exactly a rookie to track riding. I have done fifteen track days total, all with Tony’s Track Days.  Up until now, I have spent my time in the novice (Red) group, often debating whether I was ready to bump up to the intermediate (Yellow) group. I decided to stay in the novice group longer than I needed to so I could cement the basics and eliminate bad habits at relatively slower speeds. I also wanted to learn how to pass safely and courteously.

The lucky new owner of the ZX6R. I hope you enjoy it as much as I have.
Jeff Meyers

My ego didn’t like it, but I kept telling my ego to shut the hell up because my body didn’t want to pay the price of crashing. It worked. I am now a solid “Yellow Rider” and feel confident that I am there with the appropriate skill set. Ironically, “yellow” is an appropriate description for my current level since fear is now the main factor holding me back from going faster.
Over the next several track days, I plan to fine-tune my form, push myself against that fear barrier, and (hopefully) build confidence each time so that I become consistently faster. My goal is to bump up to the Advanced (Blue) group, and who knows, maybe to the Super-advanced (Black) group someday.

Jeff Meyers is the newest guest blogger to the RITZ team. Jeff is a self-described middle-aged sport bike and track day dog. He has been riding for almost 30 years and, like many folks of his vintage, was taught by his friends. He is amazed to still be here given what he did at a young age on a motorcycle with such little skill and such a need for speed. He is a lawyer at his “real” job, but also is a part time Motorcycle Safety Foundation Rider Coach and has had the privilege of working for Suzuki assisting in running demo rides, mostly at the Americade rally in Lake George, New York. Jeff loves to learn, especially about riding motorcycles.

Thanks, Jeff. I’m sure you will meet your goal of moving into the faster groups. Just continue to take the time you need to get there.
What are your riding goals? What holds you back from accomplishing them?

Please Donate to Keep the Articles Coming

If you liked this article and the many other articles on this site, please toss a buck or five into the hat. It’s greatly appreciated!

    • Click the PayPal “Pay Now” button.
    • Then indicate quantity in $2.00 increments. – Example: put “2” in “QUANTITY” field to donate $4.00, “3” for a $6.00 donation, etc.

Why $2.00? Due to the PayPal fee structure, a $2.00 donation is significantly more beneficial compared to a $1.00 donation.

Thank You!




Check out these related posts:

Stay Informed: Subscribe NOW!
Be a Better Rider: Sign Up for Personal Training with Ken
Support Riding in the Zone: Buy a book
Support Riding in the Zone: Buy recommended products from Twisted Throttle & Amazon
Posted on

Track Day Tire Dilemma

Modern sporty street tires are quite capable of fast track riding.
Modern sporty street tires are quite capable of fast track riding. I have street compound Corsa 3s on the ZX6 in this photo.

Tires can be a source of anxiety to a motorcycle rider. And it’s no surprise, since our tires provide us with the traction we need to make it home in one piece. When it comes to track days, many people use their only street bike to also ride on the racetrack. This is great because they learn the limits of the machine with which they spend the most time.
But, having a bike that is used for both street and track means compromising on certain things, one of the most important being tires.
Below is  a letter I received from a subscriber named Kevin from the UK. I replied to his email and hit the “Send” button, only to have it bounce back. Since this is a FAQ subject, I decided to post it for everyone to read. I am also hoping Kevin reads this reply, so that he knows that I am not ignoring his question.

The Question

Name    Kevin
Subject    trackday tyres – please help!
Hi Ken,
I have been searching the internet in order to get some advice re tyres when I stumbled upon your web site which has some great advice – you are clearly very knowledgeable, I wonder if you can help please? I own a 2006 GSXR 1000 K6 and have just booked a four day track day to Almeria in Spain in September, I need to buy tyres for this trip and am torn between either Supercorsa SP (so road compound) or SC compound (SC2 rear, SC1 front), can you help me decide which is best for me?
Here’s some information related to my situation: – I have participated in UK track days (but not since 2011) , I am generally at the front of the novice group or in the slower half of the intermediate group – I’ve never participated in a European track day before and wonder if the heat is a consideration (it will be around 75-80 degrees) – I used to have a dedicated track bike (only used for 1 track day!) which I ran an SC2 rear and SC1 front on but the GSXR 1000 is now my only bike, from now on it will spend 90% of it’s time on track with a small number of outings on the road Based on the above, do you think the SP (road compound) version of the Pirelli Supercorsa will be ok or would you recommend the track compounds and if so would you recommend an SC2 rear and SC1 front or SC2 for both front and rear? I’m worried the road version will lose grip due a combination of high ambient temperature and constant track use – does this sound feasible?
Based on your suggestion, how many track days do you think I will get from the front and rear tyre, would one front and one rear be ok for all four days or would I need two rear tyres and maybe two front tyres (the trackday is running three groups, 20 minute sessions so is not open pitlane). Would the road version last longer than the track compounds on track or would it be the other way around? This question sounds silly, but how can I tell when the tyres need to be changed? I’m scared that if the answer is to wait until they start to slide then I might crash!
I’ve never used tyres solely on track before so have changed them when they squared off but I realise this won’t happen on track so I’m not sure when I should change them – I want to get as much use as possible from them as they are very expensive but I don’t want to crash! Finally, I have a set of tyre warmers which I used on the SC2/SC1 combination, if you think the SP (road) version of the tyre will be fine, can I use the tyre warmers with them?
Thanks in advance for taking the time to read this, it’s very much appreciated, esp since we have never met and I found your details on line, apologies for having troubled you but this is literally making me lose sleep and you seem to have the knowledge and ability to give good advice.

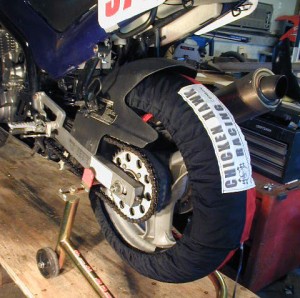

Tire warmers are necessary for racing, but not for track days.
Tire warmers are necessary for racing, but not for track days.

Regards, Kevin

My Reply

Kevin,
Tires are a big source of stress even for seasoned track day riders. I have not seen you ride, but in your particular case, with the pace that is typical of a novice/intermediate track day rider, you could go with either Supersport street-oriented tires (Supercorsa SPs), or race compound tires (SC1 Super Soft/SC2 Soft).
It’s way easier to have a track-only bike so you don’t have to spend energy worrying about street versus race compound. But, realistically, street rubber is so good these days that you can push them pretty hard on the track and they will perform very well. Besides, novices do not typically need race rubber. However, as your pace picks up and you graduate to the faster ranks, street rubber will not perform well enough for sustained fast laps. That said, I have run advanced group laps on Pirelli Corsa 3 (Corsa Rosso) street-oriented tires with no troubles.
If your bike is going to be on the track 90%, then go for the SC2/SC1 combo. Although you could also go with the SC2s as I’m sure that they will be more than sufficient for your pace and may last a bit longer. The question is whether you want to use them on the street. A lot of people do use race compound tires on the street (often as “take-offs” discarded from racers), however you will wear them out pretty fast. And, you must be aware that race-compound tires will not heat up as quickly as the street-oriented SPs and will never get up to full temperature at street speeds. They may even provide less grip than street tires in normal street riding conditions.
If you find yourself riding more than 50%  on the street, I would consider moving to street rubber. But, once you become a solid intermediate track day rider you will want race rubber. The SP street compound will work, but want your tires to be better than you are whenever possible.
When it comes to tire warmers, they are nice but aren’t necessary, especially for street tires. Two laps at a moderate pace is enough to get them up to temperature. Even race tires don’t require tire warmers, but they do allow you to go fast after only a few corners. I do not use tire warmers at track days. I’m too busy working with customers to mess with them.

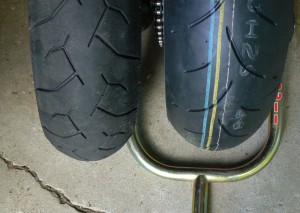

Too worn? The tire on the left still looks good, but it was starting to slide, so new rubber was mounted.
Too worn? The street-oriented Pirelli Corsa 3 on the left performed very well and still looks good, but it was starting to slide, so new rubber was mounted. Street rubber has it’s limits when you start going fast.

Deciding when to change tires is a stressor for most people. I did crash once after asking a front Corsas 3 to go one track day too many. The tire had endured a lot of abuse it wasn’t really designed for, so the punishment from too many hard laps caused them to not grip on a cold out lap. If I had just taken it a bit easier until they warmed up I would have been fine.
I tend to change front tires every 6 days and 4 for a rear, or earlier if the tracks I have ridden are particular abrasive. (I don’t know about Almeria).  That is after riding at all group levels with several expert track day laps thrown in. So, in my opinion, you will likely get the requisite 4 days out of both rear and front. Is there going to be a tire vendor at the track who can sell and mount tires if the tires are wearing faster than expected? Often there is. Find out so you can be prepared with tools and stands to change your tires at the track between days.
Good luck,
Ken
website and blog:
http://www.ridinginthezone.com

Please Donate to Keep the Articles Coming

If you liked this article and the many other articles on this site, please toss a buck or five into the hat. It’s greatly appreciated!

    • Click the PayPal “Pay Now” button.
    • Then indicate quantity in $2.00 increments. – Example: put “2” in “QUANTITY” field to donate $4.00, “3” for a $6.00 donation, etc.

Why $2.00? Due to the PayPal fee structure, a $2.00 donation is significantly more beneficial compared to a $1.00 donation.

Thank You!





Other posts related to tires and traction:
How to Preserve Traction by Managing Load
How to Develop a Traction Sense
Traction Seminar: Motorcycle Tires
Share your thoughts below.
Subscribe to the mailing list!
Buy the Book!




Posted on

Riding the Zero Electric Motorcycle

Ground control to Major Tom.
Ground control to Major Tom.

I’ve ridden all sorts of motorcycles, from Harleys to sidecar rigs, to all manner of sport and touring machines. But up until a couple of weeks ago, I had never had the chance to ride an electric motorcycle.
Thanks to Eugene Morin of Seems Electric Vehicles, I was able to cross that off my bucket list. The bike Tony (Tony’s Track Days) and I rode was the Zero “FX” , which is the dual-sport model. This particular motorcycle is outfitted with police lights and siren for the Block Island, Rhode Island Police Department. Eugene has outfitted machines for the Newport, RI men and women in blue, as well.

How Long Will it Go?

The number one question I get when I tell people that I rode an electric bike is how long will it run on a charge? According to Zero’s specifications for the FX, it can go for up to 35 miles with a single battery configuration, or 70 miles on a dual-battery setup. This is for what they call “city” riding. 70 mph highway riding causes the battery life to plummet to only 15 miles with the single battery and 30 miles with the dual battery.
But, this dual-sport model is perfectly suited for the job it is intended for: curb jumping, rock hopping and general shenanigans, and not for droning on a highway.

Eugene brought the magic machine from Rhodie.
Eugene brought the magic machine from Rhodie.

What About the Power?

The Zero FX puts out 70 foot-pounds of torque from the moment you twist the throttle. The unit we rode had just a single battery, but a second battery is available that provides more horsepower (but the same torque). With 70 foot pounds of torque from the bottom, the bike jumps to life, reaching 60 mph in 4 seconds! Yahoo!
However, once underway you quickly find the top end of its 27hp (44hp with two batteries). Max hp is reached at just 3,750 rpm. Flat out, baby.
Tony and I took the little FX in some dirty parts of Thompson Speedway’s infield, dodging construction equipment and roosting the rear tire to see what the potential is for trail riding. In four words, “it is a blast”. This is more of what the FX is made for.
There is no gearshift lever or clutch to modulate, just twist the throttle on and off to regulate speed and power. With fully- adjustable suspension, the bike will handle most anything you toss in front of it.
On the racetrack, it was lively, but ultimately, it fell flat once you got the motor wound up. Max speed is 80 mph, but I wasn’t comfortable going much over 60 on the dual-sport tires. The bike only weights 240 pounds, so it was light and flickable. Perfect for off-road or city riding, but out of its element on a pavement racetrack (or extended highway riding).

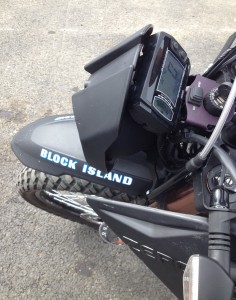

The dash was spartan, but has plenty of ways to customize power delivery.
The dash is spartan, but had plenty of ways to customize power delivery.

We didn’t mess too much with the power modes, but there are some. One mode delivers a mellow power delivery, while the other snaps to attention with a bit more authority. There is much more to learn about all the settings. I can see the potential for some riders to just hit the “easy” button and ride happily for weeks.

What’s It Like To Ride?

Riding the Zero FX was a pleasant surprise. I expected scooter-like sensations. What I got was the power and responsiveness of a real motorcycle. It’s combination of liter-bike torque with 250 Ninja horsepower is something I’d have to get used to. But, that torque is enough to satisfy me and make me want to ride the Zero more and more.
The other observation that stands out when riding the Zero is that something visceral is missing…sound. What you hear when the bike is stationary is complete silence. Tony had to ask whether the bike was “running” or not. It was. There is an ignition key and some safety switches to prevent accidental launching, which is a good thing, because it is impossible at a quick glance to know whether the thing is loaded or not. Until you get used to the immediate torque and the safety systems, it’s probably best not to point it at any solid objects before you’re ready to roll.

Can I Live With One?

Tony
Tony

Electric bikes are definitely something I am interested in. I can imagine stealthily working my way through the woods or traffic with just the whistle of the wind, the whine of the tires and the whirring of the Z-Force® 75-5 passively air-cooled, high efficiency, radial flux permanent magnet, brushless motor to remind me that I’m on a motorcycle.
The range may be a problem, but not if you use it for what it’s designed for. A bike like this would be a great trail bike and commuter. I would keep my Triumph Sprint for long-haul duty and my Street Triple for the track.
The street versions offer more power and range and a more streetbike-like experience, or so I’m told. (Try 106 foot pounds of torque for the Zero SR!) Thankfully, Eugene promises to bring a handful of Zero Electric Motorcycles to a few Tony’s Track Days events for us to try (yes, customers can ride them, too). Join the TTD mailing list to stay informed.
For you loud pipes folks, I never believed that loud pipes save lives, so I am not concerned about any safety deficit. And even though I love the sufficiently muffled, but booming sound of a V-Twin, or the music of a spinning triple or in-line four in my ears, I can equally appreciate the silence of an electric motor. My neighbors will, too.
Imagine eliminating all the problems off-road and paved racetrack owners have now with neighbors who complain about loud motorcycles. Silence is golden, people.

Cost

Unfortunately, prices are still a bit high for my personal bank account to endure.  The FX retails for $9,500.00 with a single battery or $12,000.00 for the two-battery setup. What you get is a unique, quality-built machine that happens to get the equivalent of 470 mpg (city).
Prices should continue to fall, so I suspect we will be seeing more and more electric bikes in the woods, on the street, and on the track in the near future. One may even appear in my garage before the next decade rolls around. But for now, I’ll have to stick to fossil fuel-consuming road burners.

Videos


Check out these related posts:


Subscribe to the mailing list!
Buy the Book!

Please Donate to Keep the Articles Coming

If you liked this article and the many other articles on this site, please toss a buck or five into the hat. It’s greatly appreciated!

    • Click the PayPal “Pay Now” button.
    • Then indicate quantity in $2.00 increments. – Example: put “2” in “QUANTITY” field to donate $4.00, “3” for a $6.00 donation, etc.

Why $2.00? Due to the PayPal fee structure, a $2.00 donation is significantly more beneficial compared to a $1.00 donation.

Thank You!




Check out these posts:

How Can I help You? Online Coaching NOW AVAILABLE
Stay Informed: Subscribe NOW!
Trianing-Tours_LandingBe a Better Rider: Sign Up for Personal Training with Ken
Support Riding in the Zone: Buy a book
Support Riding in the Zone: Buy products from Twisted Throttle & Amazon
Twisted_Affiliate-Interphone-widget
Twisted_Affiliate-Interphone-widget



Posted on

Guest Writer: Track Day Rain Riding

Adam Butler is the first ever RITZ guest blog contributor. Adam is an expert level roadracer with the Loudon Roadracing Series and is one of my co-instructors for Tony’s Track Days. You can read Adam’s biography here
Let’s see what Adam has to say.

Do you like riding in the rain? I sure do!!

by Adam Butler

Adam Butler: "If you could see the smile inside my helmet".
Adam Butler: “If you could see the smile inside my helmet”.

If you ride track days on a regular basis chances are that you will find yourself presented with a rainy day. Some of us really find riding in the rain a fun and rewarding experience while others do not embrace the wet conditions as much. Some riders just don’t want to get wet. Others feel intimidated by the reduced traction available and don’t want to take a spill. I can understand the desire to keep your bike shiny and clean.  I prefer to take the chance to get out in the wet and work on my traction management. Riding in the rain presents a great opportunity to hone your smooth riding technique.

Ribbit!

There are some things that you can do to make your wet time on the track more enjoyable. The number one thing you need is a good frame of mind. If you go out with an open mind and a positive attitude you will have much more fun and success. It’s easy to have a fun, positive attitude in the dry…heck, we all love carving turns on a dry 70 degree day. Having this same outlook in the wet will make your experience much better.

Stay Dry and See

There are some gear related things that you can do to help. Some basic rain gear will help you stay dry. I have a basic Frogg Togg two piece outfit that goes over my leathers.
This will keep me from getting soggy. Some good no fog treatment for your face shield helps you see better. (Ken: FogCity shield inserts are one option)

Tires

The last thing is to make sure your tires are in good shape. Any time you are on the track you need to make sure you have good quality tires. Dedicated rain tires are great but you can have a good time on street tires too.
Traction management in the wet all revolves around being smooth. When the conditions are wet there is less traction available. So naturally you will be able to get away with fewer mistakes. I start out slow and easy. I start my ride nice and easy and get a feel for the conditions. Then gradually increase my pace as my comfort level increases. The key is to stay relaxed. For me, that involves keeping a light attitude. I often will chat to myself or sing a little.
So next time it rains at a track day head out and give it a whirl. Just remember to bring your smile with you…. 🙂

To read more about traction management check out these posts:


What are your thoughts about riding in the rain, either on the street or on the racetrack?
Subscribe to the mailing list!
Buy the Book!

Please Donate to Keep the Articles Coming

If you liked this article and the many other articles on this site, please toss a buck or five into the hat. It’s greatly appreciated!

    • Click the PayPal “Pay Now” button.
    • Then indicate quantity in $2.00 increments. – Example: put “2” in “QUANTITY” field to donate $4.00, “3” for a $6.00 donation, etc.

Why $2.00? Due to the PayPal fee structure, a $2.00 donation is significantly more beneficial compared to a $1.00 donation.

Thank You!




Check out these posts:

How Can I help You? Online Coaching NOW AVAILABLE
Stay Informed: Subscribe NOW!
Trianing-Tours_LandingBe a Better Rider: Sign Up for Personal Training with Ken
Support Riding in the Zone: Buy a book
Support Riding in the Zone: Buy products from Twisted Throttle & Amazon
Twisted_Affiliate-Interphone-widget
Twisted_Affiliate-Interphone-widget



Posted on

New Bike, New Track

It’s hard enough to get accustomed to a new-to-you bike, but throw in a new-to-you racetrack, and things can get interesting. It’s kinda like patting your head while rubbing your tummy in a circular manner (I’m pretty good at that, BTW). Normally, I get up to speed fairly quickly when I ride a new track, evaluating each corner for its character: radius, camber, and whether it is an “entry” turn or an “exit” turn. But, it took me longer than normal to sort out the Barber track, mostly because the track consists of blind corners and a layout that is somewhat complex.
This means that it took a few sessions to not feel lost. I would be asking myself, “Wait, is this that tight turn or is it that turn that opens up?”.
Add to that the need to acclimate to a new-to-me motorcycle and the first day at Barber had me not exactly feeling Stig-like. The second day was much better.

Which way do I go?
Which way do I go? Notice the fogging face shield.
Copyright Raul Jerez / Highside Photo

Learning the Barber Motorsports Rollercoaster

I could tell you all the super-secrets I use to learn new tricks, but I would be repeating myself, because I already wrote a lengthy article on tips for learning new tracks on the Tony’s Track Days website. Read it HERE. Share any other tips you have in the comments below.
Even with my book of tricks in mind, I had a harder than normal time figuring out Barber. Now, to be fair to myself and to put things into perspective (lest you thought for one minute that I wasn’t awesome from the start), I was going respectably fast in the Advanced group after the first session. However, my standards for pacing with the fast guys made me rather discouraged. I know many of you slowpokes are used to being passed by half of whatever group you ride in, but I am not (just kidding). But, even after the third session, I was feeling a bit too much like I should be in the Intermediate group.
This would not do, so I consulted with Tony and my faster peers from New England and discovered that I was slowing too much for a few corners and not getting on the gas nearly early or hard enough. The last two sessions were better, as I started identifying the problem corners and applying some of the reference points Tony and the others were using.

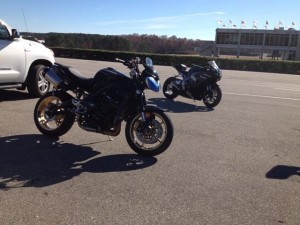

Mother Nature's Tire Warmers
Mother Nature’s Tire Warmers

Sunday morning was 25 degrees F, so we substituted the frozen on-track festivities for a walk around and some bench racing around the tire warmers. Tony and I didn’t bring tire warmers, so we opted for Mother Nature’s warmers, which worked surprisingly well (at least on one side of the tires). After lunch, the temps got up to a whopping 35 degrees, so we pulled on our leathers and hit the track.
Nippy fingers and a fogging face shield told me to take it slow, but after a few laps, it became apparent that the track itself had some grip. Since it was 70 degrees only a few days before we arrived, the ground wasn’t nearly as cold as the air and the asphalt was well over 50 degrees…not great but acceptable.
Let the fun begin. The rest of Sunday was a blast. I started getting up to speed hooking up with Keith, Woody, and Rich. Tony, Adam and Aaron were too fast for me.  See the videos HERE.
But, wait! There is more to this story, so read on.

The ZX6R owenstrackdayphotos.com
The ZX6R
owenstrackdayphotos.com

A New Bike

If you’ve been reading the RITZ blog at all you probably know that I sold my most-awesome ZX6R for a Triumph Street Triple R. I really didn’t want to sell the ZX, but a medical issue required me to make the switch from a crouched racer posture to an upright naked posture (oh, grow up).
The differences between the ZX6 and the Street Triple’s spanned only a few areas: handling, gearing, power characteristics, body position, throttle response, drive timing, front tire grip, footpeg feel, shifting ease, wind noise, and color (I wonder how the Striple would look painted Kawi Green).
With all these things to adjust to, it took me most of the first day to get a good session in.

Is this bike twerking? Copyright Raul Jerez / Highside Photo
The new bike.
Copyright Raul Jerez / Highside Photo

Where’s the Power?
In a nutshell, I wished the 675 had more power. I know, I know power just masks poor riding. But, it also is very useful when trying to pace with the big boys.
The Triple doesn’t drive nearly as hard as the ZX636, so I needed to learn to ride the bike more like a small displacement bike, like a SV. To get the bike out of corners and reach acceptable speed on the straights, I needed to go from cracking the throttle to Wide Open Throttle (WOT) immediately to get the drive I wanted. I found myself using full throttle a lot. The 1050 throttle tube helped make full throttle a bit quicker compared to the stock tube, but a MotinPro unit may find its way onto the Triple’s handlebar end fairly soon.
Why is my Bike Twerking?
OK, so power was down, but that is something I found to be rather fun to manage. Full throttle is never boring. I even think I could have kept with Tony if the bike had better manners in the handling department. Don’t get me wrong, for most riders, the Street Triple R’s fully adjustable fork and shock would be awesome, especially for street duty. The bike never scared me, but I was pushing the bike fairly hard and found the bike wanting to wiggle like Miley Cyrus when cresting the turn 3 hill at full honk. I never felt as if I could drag a knee over that hill with the way the Striple was Twerking beneath me.
Perhaps there was some more adjustments that could have tamed the beast, but the temperatures were so low and the oil so thick that any adjustments would probably not net any real benefit, so I left the adjusters at the Loudon settings and dealt with it. Peter at Computrack Boston will be receiving my forks and order for a new shock by the end of the year so I can have more range of adjustment to suit my style.

In a future post, I will talk about my experience as a track day customer, as opposed to an administrator/instructor. I made note of several areas that helped me better relate to track day customers I work with. Stay Tuned.

Subscribe to my Newsletter Mailing List to receive update notices in your email inbox.

Please Donate to Keep the Articles Coming

If you liked this article and the many other articles on this site, please toss a buck or five into the hat. It’s greatly appreciated!

    • Click the PayPal “Pay Now” button.
    • Then indicate quantity in $2.00 increments. – Example: put “2” in “QUANTITY” field to donate $4.00, “3” for a $6.00 donation, etc.

Why $2.00? Due to the PayPal fee structure, a $2.00 donation is significantly more beneficial compared to a $1.00 donation.

Thank You!




Check out these posts:

How Can I help You? Online Coaching NOW AVAILABLE
Stay Informed: Subscribe NOW!
Trianing-Tours_LandingBe a Better Rider: Sign Up for Personal Training with Ken
Support Riding in the Zone: Buy a book
Support Riding in the Zone: Buy products from Twisted Throttle & Amazon
Twisted_Affiliate-Interphone-widget
Twisted_Affiliate-Interphone-widget



Posted on

Barber Track Day Videos – Street Triple R

Sometimes, video is worth a thousand words, so here I present three videos from the recent trip down to Barber Motorsports Park in Alabama.
Below is a video that Aaron (Aprilia RSV4) shot of my first few warm up laps during that last session. The video does not show just how much of a roller coaster this track is. The elevation changes are significant. The Museum turn where we ride over the curbing is a less extreme version of the corkscrew at Laguna Seca.

Here’s one where I follow Tony onto the track and then he takes off. Tony got a hang of the track pretty quickly. It was about 45 degrees but sunny, so after a few slow laps, the tires were able to get warm enough for us to lay down some fairly quick laps. I was still learning the track and I can see several areas where I could maintain higher entry speeds and get on the gas earlier. Can you spot these places?

Ken follows Keith on his new-to-him 1100 Monster EVO racebike:

Below is a video posted by Keith (Ducati 1100 EVO Monster). I appear after 4 laps or so. Thanks Keith!

Barber motorsports part X-Act Nov 24 from GYRO BOX on Vimeo.


Subscribe to my Newsletter Mailing List to receive update notices in your email inbox.

Please Donate to Keep the Articles Coming

If you liked this article and the many other articles on this site, please toss a buck or five into the hat. It’s greatly appreciated!

    • Click the PayPal “Pay Now” button.
    • Then indicate quantity in $2.00 increments. – Example: put “2” in “QUANTITY” field to donate $4.00, “3” for a $6.00 donation, etc.

Why $2.00? Due to the PayPal fee structure, a $2.00 donation is significantly more beneficial compared to a $1.00 donation.

Thank You!




Posted on

Thompson (CT) Motor Speedway Progress Report

Northeastern Racetrack Drought is Officially Over!

Tony with the Thompson Speedway pace car.
Tony with the Thompson Speedway pace car.

New Hampshire Motor Speedway has been the only game in town for motorcycle track day riders and racers for many years. We New Englanders had to drive 6 or more hours to the New Jersey Motorsports Park in southern Jersey to ride another racetrack. But, that’s is changing. Last year, New York Safety Track (NYST) opened its doors, making motorcycle track days a reasonable drive for most of us Northeasterners. Now, we have Thompson Speedway building a road course within 2 hours of Boston, 3 hours from NYC, and an hour from Providence! If that isn’t enough, Palmer Motorsports Park is well underway in Palmer, MA. Tony and I have been talking with the owners about running track days there in 2015.

View Larger Map
Tony and I went to Thompson this past week to review the progress of construction. We met with Josh about the Tony’s Track Days 2014 schedule and with Louis about certain changes we wanted to have happen to ensure that motorcycles will be accommodated. Our list included barrier protection where a lot of runoff isn’t possible, redirecting path of travel to minimize risk when going under the bridge, as well as discussions about curbing, and runoff material. Louis and Josh listened carefully to our concerns, so we are confident that they will do the very best they can to make Thompson a safe as possible.

The track

Thompson-map-with-numbers3The track itself is 1.7 miles long and combines very fast, sweeping sections, a loooong strait, and some very tight corners, some off camber. Tony and I have decided that we will run it in both the counter clockwise and clockwise directions, to expand the “number” of tracks we have available to us in New England. We also run NYST in both directions, so that alone can be thought of as 4 different tracks to ride! Take a look at the drive around we did last week.

Thompson Speedway clockwise

Thompson Speedway counterclockwise

Facilities

A beautiful new garage is being built next to a scoring/observation tower that will have a classroom  and a pro shop. There is a golf country club connected tot he facility that will be serving lunches and dinners for track day customers. Camping will also be allowed.
